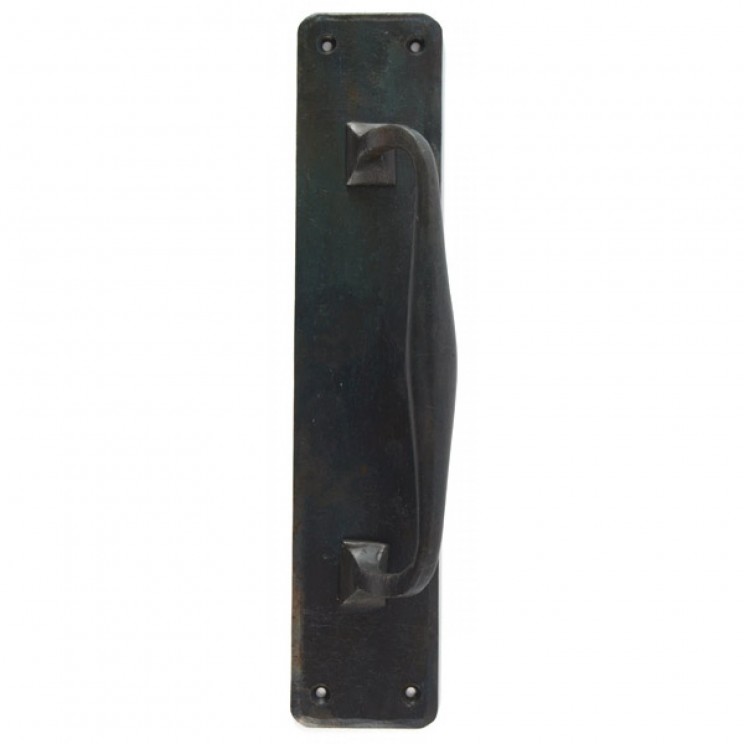

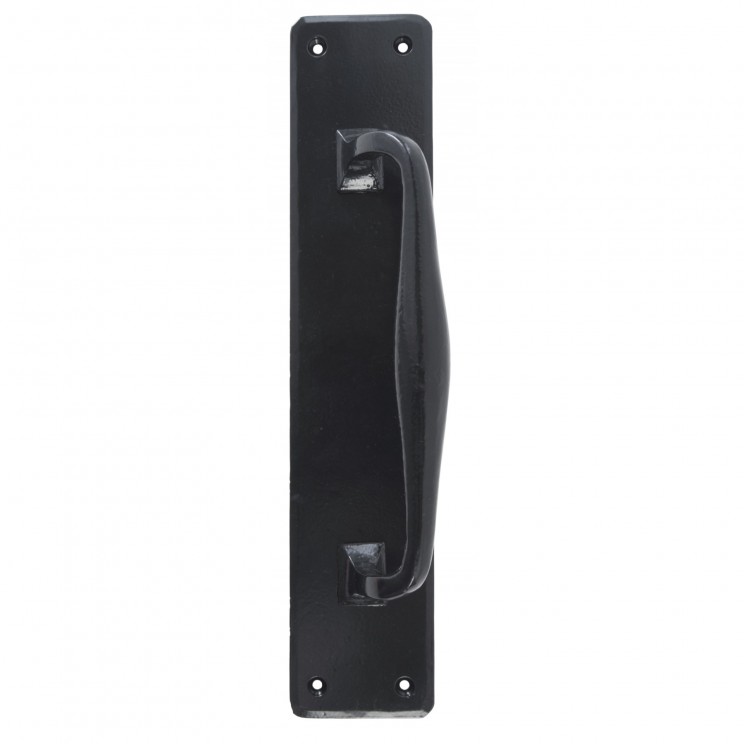

ANV334 - Pull Handle on Backplate

Product Code: ANV334

Key Features

Handle length: 195mm
Backplate: 316 x 65mm
Projection: 56mm
Fixing centres: 40mm
Plate thickness: 3mm

Additional information

Offset black pull handle on a backplate. Face fixing with 4 countersink screws.
Supplied with necessary fixing screws.

Specifications:

Technical Drawing

The following are measurements and dimensions for the above product. Please measure the intended area to ensure the product is suitable.

Product Codes and Sizes:

Handle length: 195mm
Backplate: 316 x 65mm
Projection: 56mm
Fixing centres: 40mm
Plate thickness: 3mm




Width Display:: ANV344

Product Finishes:
