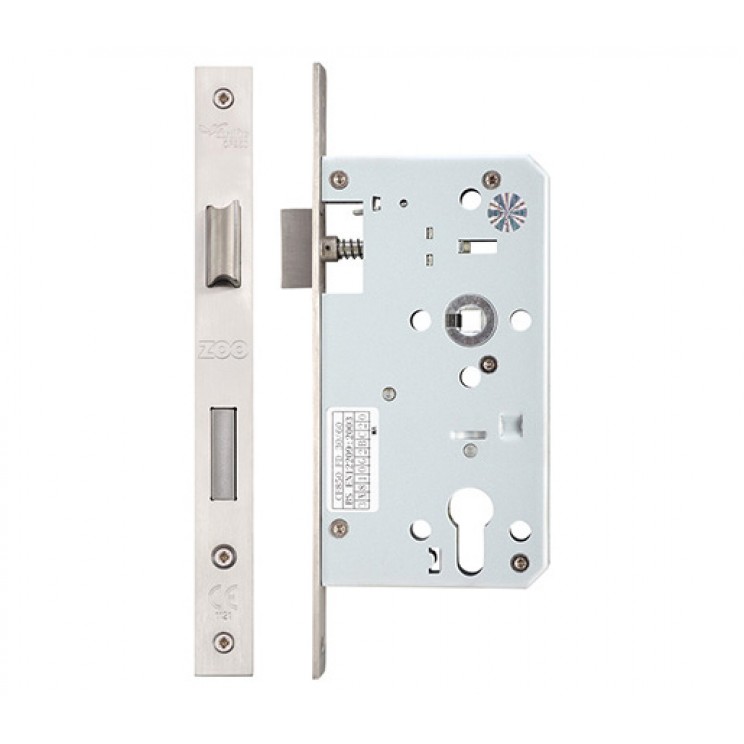

ZDL7260ST Single Throw Euro Sash Lock - 72mm c/c

Product Code: ZDL7260ST
In Stock: Yes

Key Features

  • BS EN 12209 2003 : Grade 3
  • 90mm Case Size
  • 60mm Backset
  • Square Profile - 22mm SS304 Forend
  • SS304 Latchbolt & Deadbolt
  • Single Throw Deadbolt
  • Anti-Rattle Strike
  • Grip Tight Follower
  • 72mm c/c



{configurable}

{configurable_select}

{/configurable}

Specifications:

ZDL7260ST DATA SHEET

The following are measurements and dimensions for the above product. Please measure the intended area to ensure the product is suitable.

Product Codes and Sizes:

  • ZDL7260ST
  • Face Plate Size 235mm High x 22mm Wide
  • Body Size 165mm High x 90mm Wide
  • CE Marked and Certifire Approved
  • Suitable for 30/60 Min Fire Doors
  • Tested To BS EN 12209 : 2003 Grade 3
  • Suitable For Commerical Use

Product Finishes:
